Bench top extraction for laboratory safety
X

Bench top extraction arm - ventilation control

Lindinvent's solution for bench top extraction for safety is the same as for the Down-flow bench and the Draft hood.

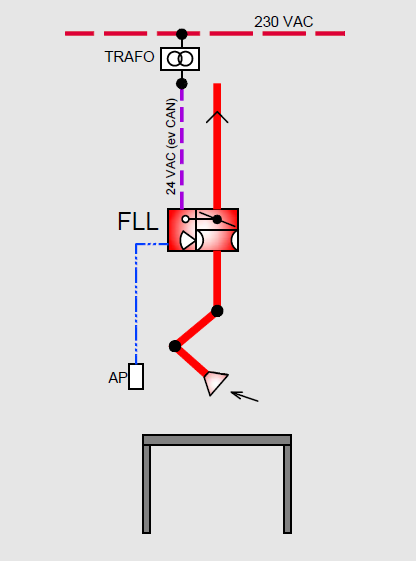

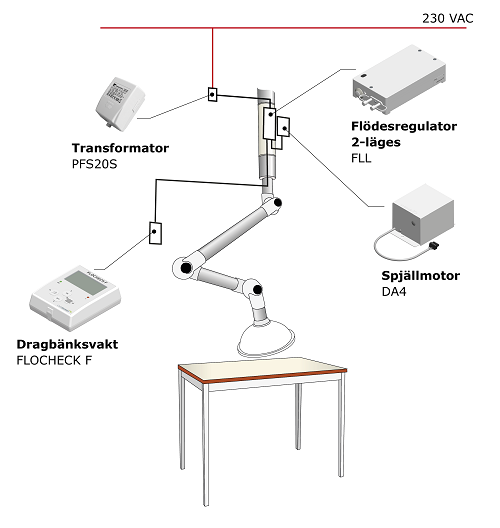

The xtractor is equipped with Lindinvent's 2-mode airflow regulator FLL.

The workflow is maintained with high accuracy via throttle control. FLL continuously measures the air flow via the internal flow meter which is connected via hoses to the measuring flange.

The electrical connection contactor EFK can be connected to the controller. EFK breaks the voltage to electrical outlets after adjustable time in the event of insufficient flow. This is a safety measure to avoid explosions, for example when handling flammable substances.

FLOCHECK F is used as a drawbar monitor / user panel (AP). The panel is used to temporarily change the operating mode from the normal workflow to the reduced airflow. FLOCHECK F also displays status messages and indicates alarms.
