The reactive supply air diffuser ISQ-M works in conjunction with the duct-mounted room climate control system DCV-RCb. Like the active diffuser ISQ, it can be one of the world’s most versatile supply air diffusers for demand-controlled climate regulation. The diffusers are designed to maintain high comfort levels during operating modes that allow for low airflow and significantly undercooled supply air.

ISQ-M is part of the latest generation of diffusers from Lindinvent and is designed to meet the demands for simple and efficient climate control set by designers, installers, integrators, property owners, tenants, and maintenance technicians.

ISQ-M Key Features:

• Designed for larger spaces in conjunction with the duct-mounted room climate
  control system DCV-RCb.
• Integrated diffuser box for easier installation.
• No electronics or sensors. The diffuser requires no electrical installation.

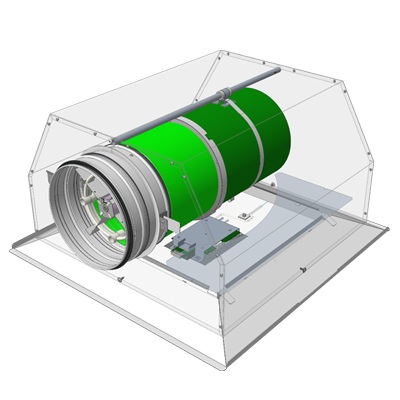

• Constructed and styled like the active diffuser ISQ.

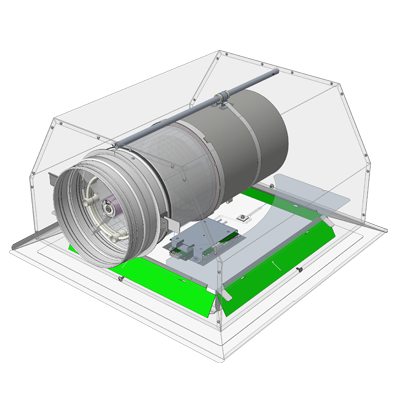

• Equipped with a self-regulating slot opening. Through a design with movable damper blades in the diffuser section, the slot opening adjusts according to the airflow to maintain air velocity, ensuring good mixing of room air and eliminating cold drafts even at low airflow with undercooled air.
• Easy to adjust airflow across multiple diffusers.
• Easily adjustable diffusion pattern.
• Quiet: Up to 125 l/s with a sound level below 30 dB(A)
