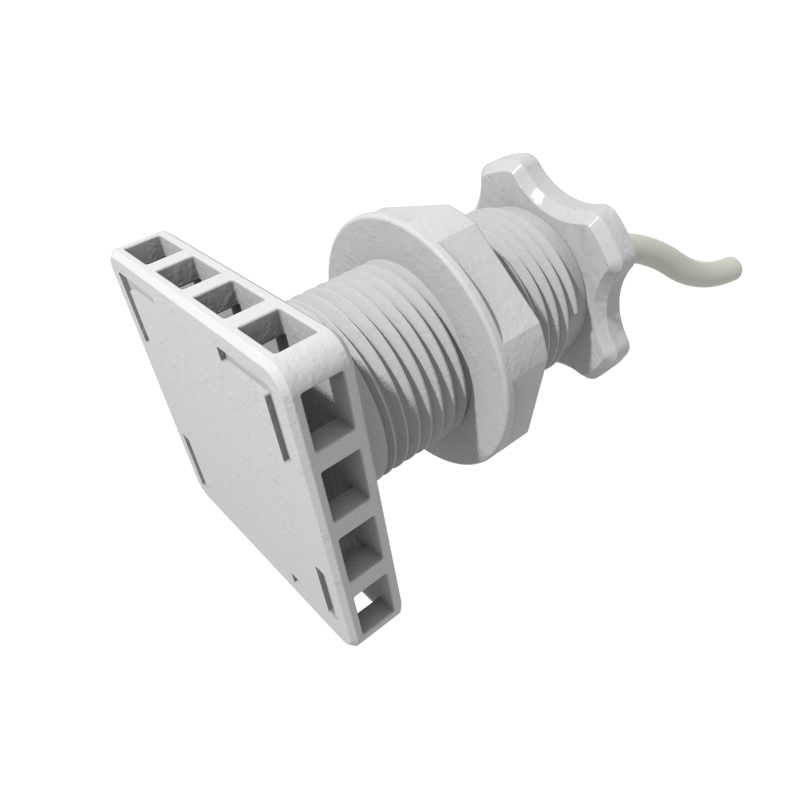

GTH-PA is a temperature and humidity sensor specifically designed for installation in the panel/lining of a wall-mounted downward induction unit (Climate convector) equipped with chilled beam controller BCXb.

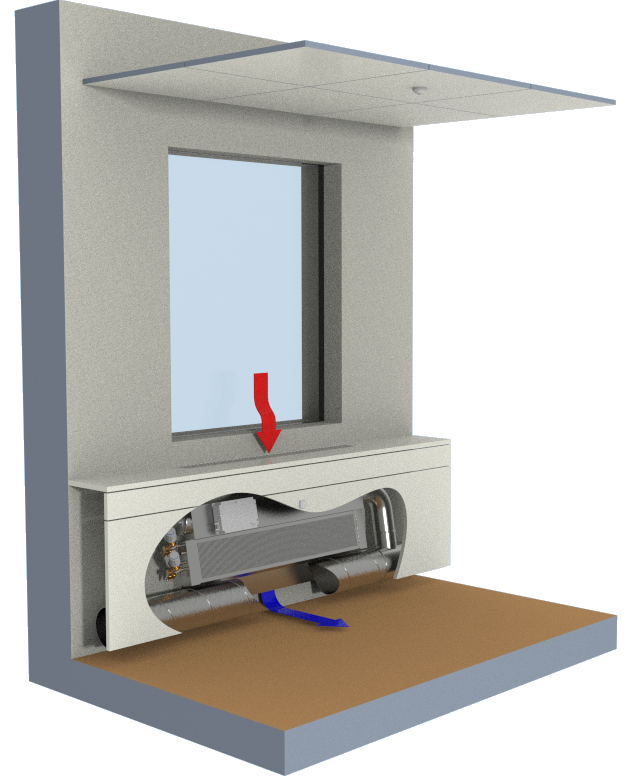

When cooling a room, a large temperature gradient forms, making it difficult to find a representative location for the room-temperature sensor. GTH-PA comes with a solution that offers a smooth, straightforward installation in the facade panel.

• Temperature sensor
• Humidity sensor
• An accessory to Chilled Beam Controller BCXb
• Straightforward installation in a facade panel
• Sensor part with cabling that can easily be plugged in and out of the insertion tube part
• Allows for easy disassembly of the facade panel for maintenance
• Documentation: See the product description for instructions on assembly and connection.

Design option

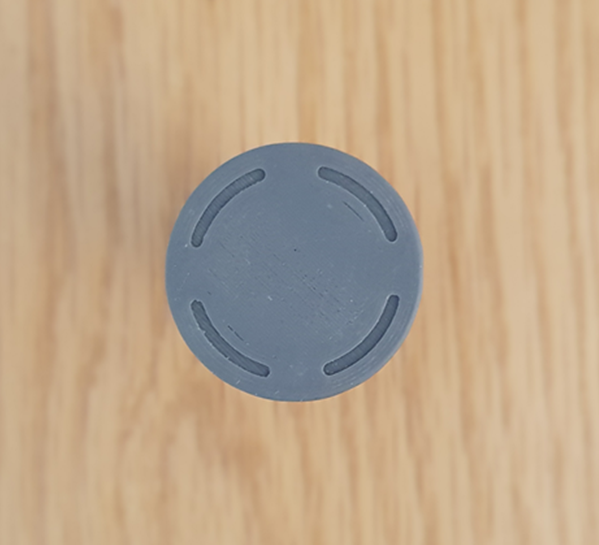

In addition to the rectangular white version, GTH-PA is also available in a circular (Ø30 mm), grey version adapted for installation in wooden panels.

3D-Model
