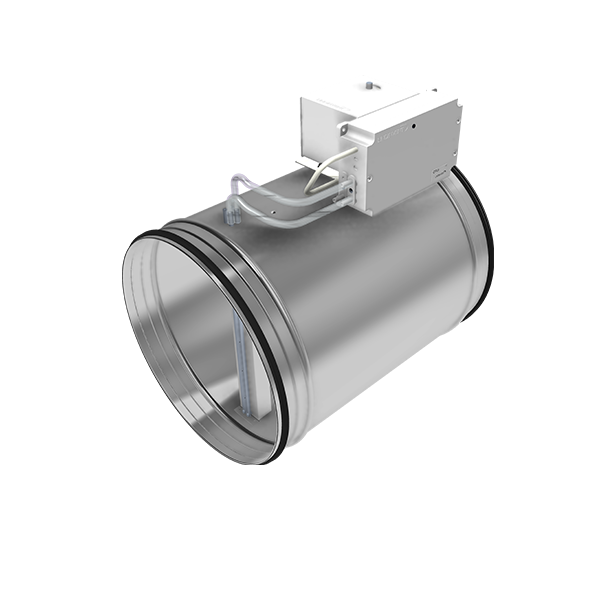

The CFLb controller, part of the DCV-CFb smart damper, can be configured to either maintain constant static pressure in a ventilation duct while measuring airflow, or maintain constant airflow while measuring duct pressure.

Characteristics

• Features a built-in pressure sensor.
• Features a built-in flow sensor.
• Enables system zoning based on varying pressure requirements to ensure correct airflow rates and sound levels at the terminals.
• Supplied with a pressure nipple and tubing for pressure measurement.

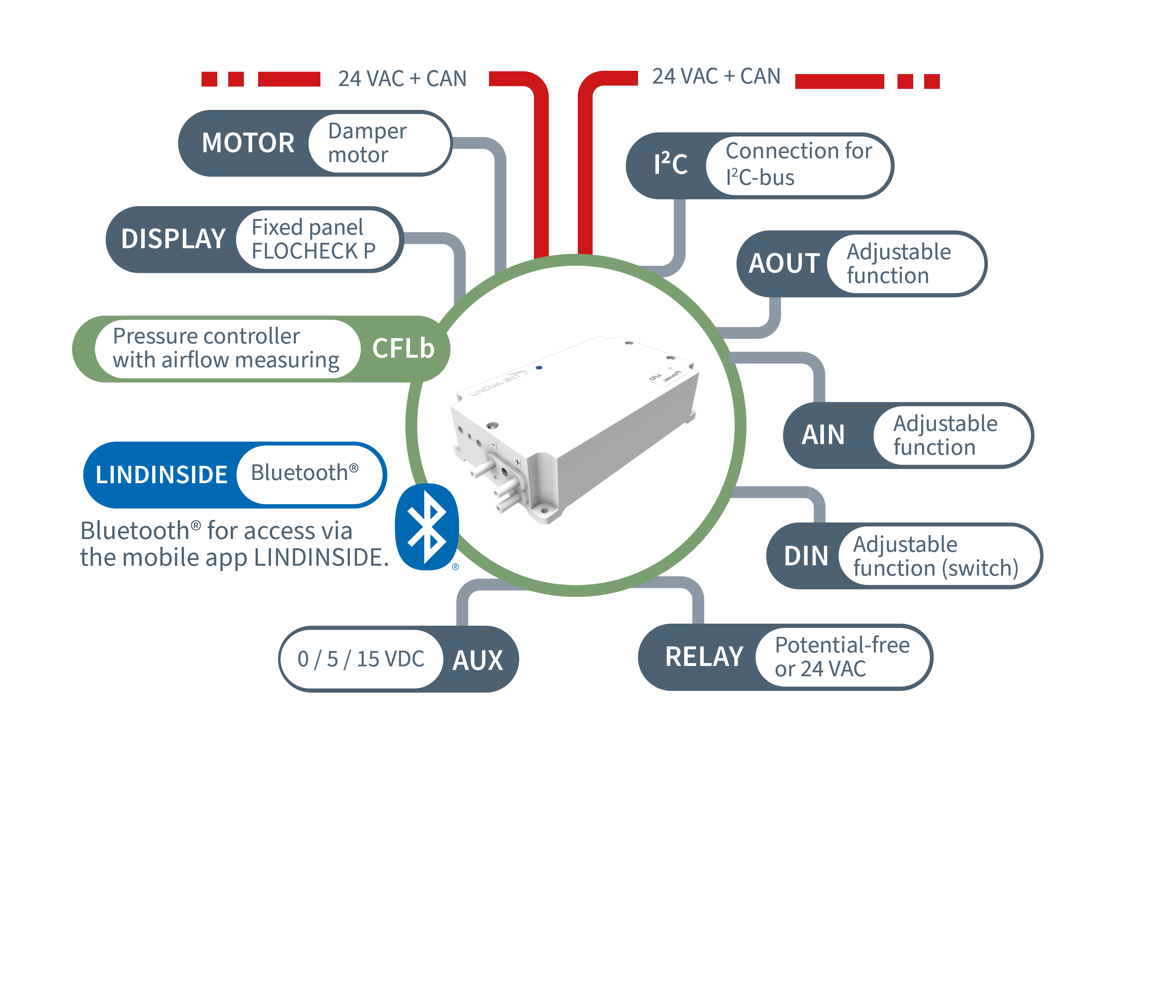

• Connects via node ID to a communication loop (CAN) for interaction with other control units.
• Access to the Lindinvent central unit is established via TCP/IP and the NCE gateway.
• Access and communication with other higher-level systems are established via NCE using Modbus RTU or Modbus TCP.
• Includes parameters that can be visualised and controlled via the web tool LINDINSPECT.
• Equipped with Bluetooth® for communication via the mobile app LINDINSIDE.

3D-model CFLb
