SPLb - Pressure Regulator


+ DOCUMENTATION

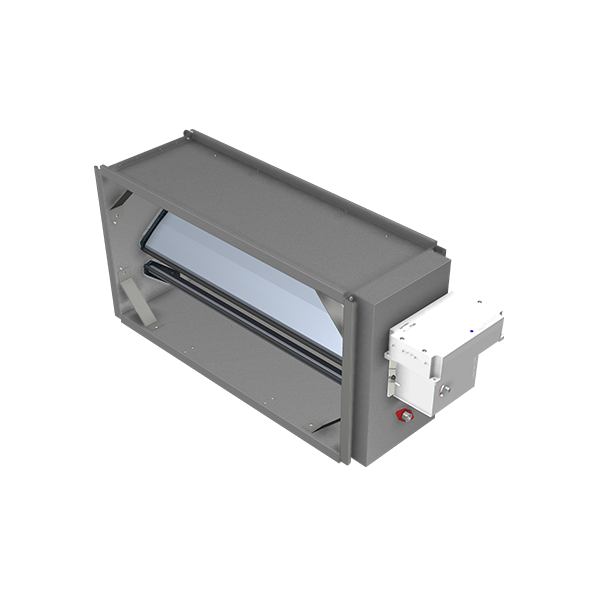

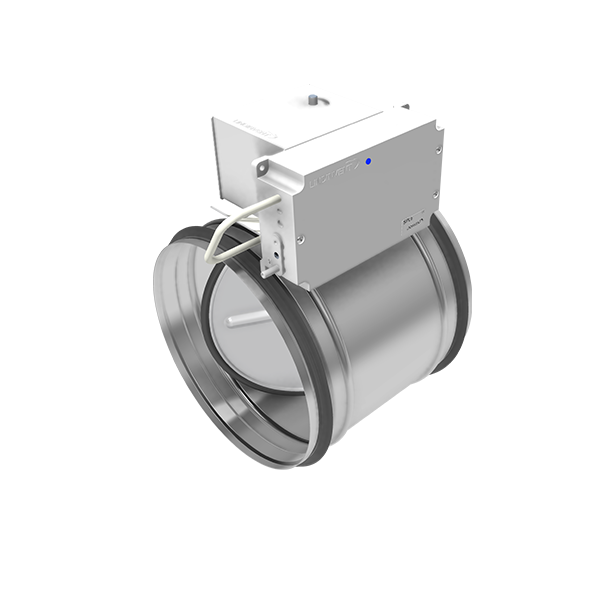

The SPLb regulator, which is part of the smart damper DCV-SPb, compensates for pressure changes in a duct by maintaining static pressure through a connected damper.

Characteristics

  • Internal pressure sensor used for measuring duct pressure and damper control.
  • The regulator allows for the sectioning of systems with different pressure requirements to ensure airflow and noise levels from diffusers.
  • The pressure sensor in the regulator is connected via a hose to the pressure push nipple.

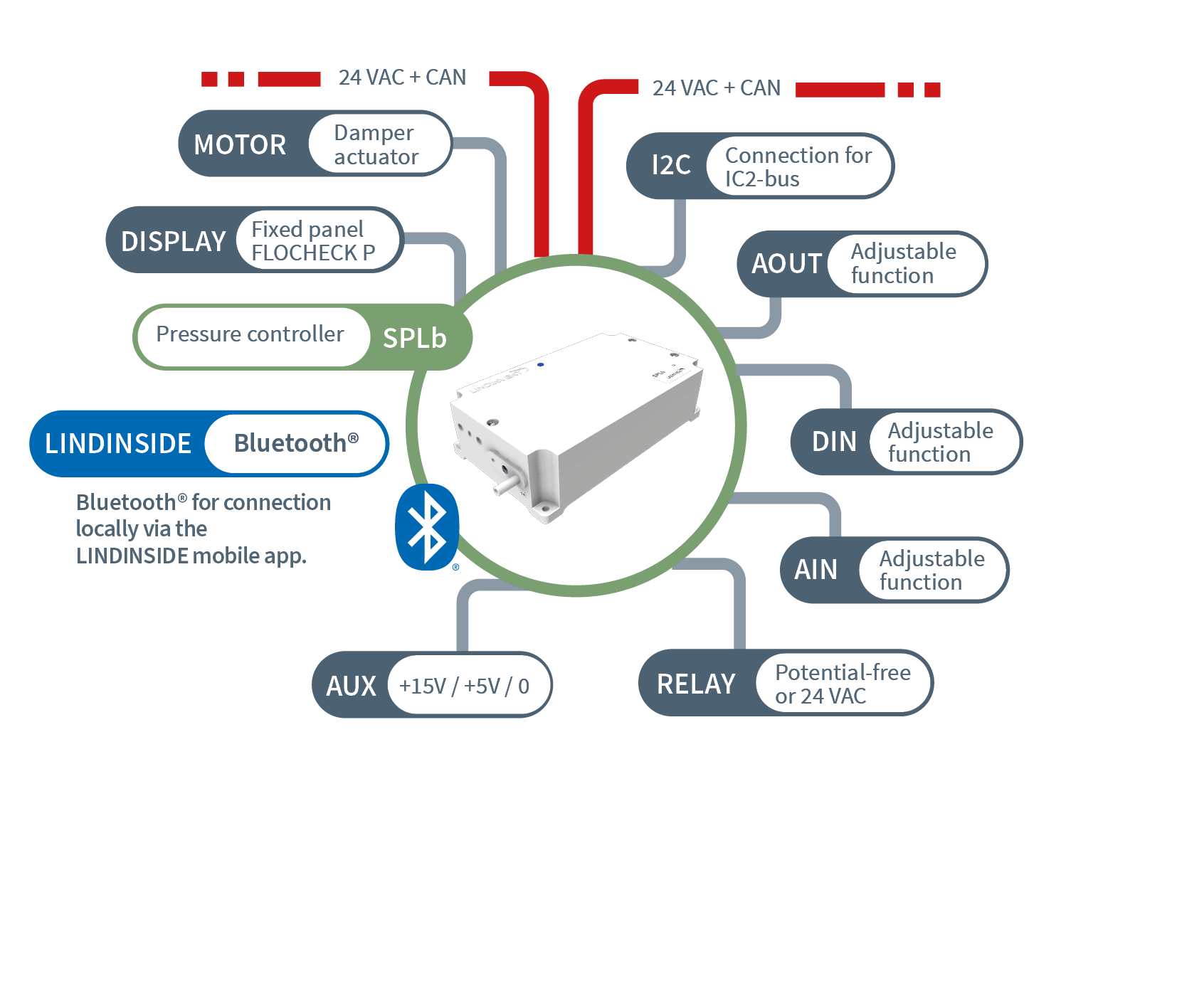

  • Can be connected via Node ID to a communication bus (CAN) for access and communication with other cooperating nodes or systems via LINDINTELL or Gateway NCE with Modbus TCP/RTU.
  • The regulator has parameters that can be read and controlled from the LINDINSPECT web tool via CAN.
  • Bluetooth® for access via the mobile application LINDINSIDE.
